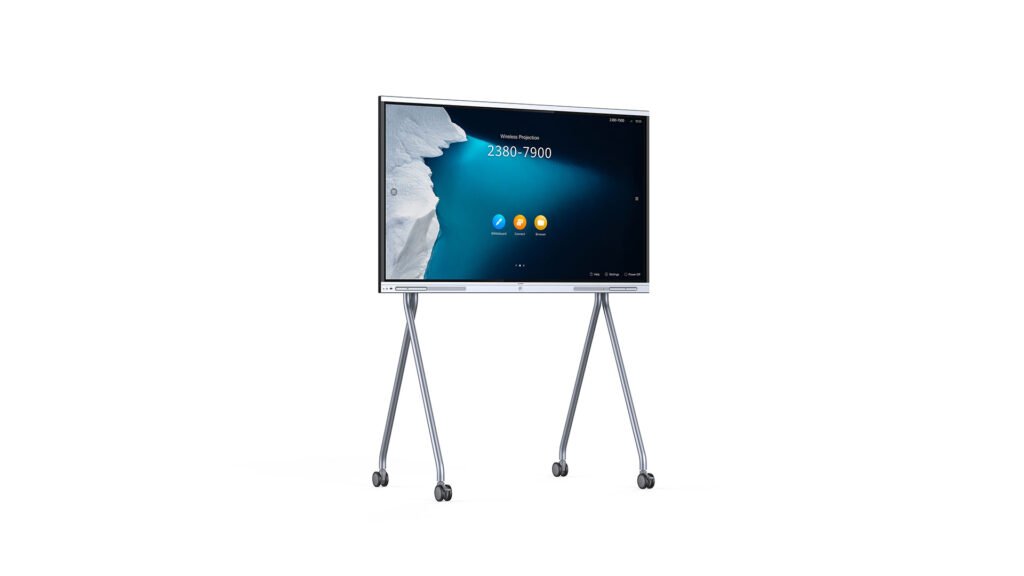

HUAWEI IdeaHub Board — a 4K soft light screen and smart board designed for collaboration and creation: a space where fresh thinking and new ideas can be brought to life.
The blue-light band ranges from 415 nm to 455 nm.
An automatic Picture Quality (PQ) color calibration algorithm produces more vibrant, vivid colors. A 178° viewing angle projects brilliant, crisp color in every direction
The high brightness Direct LED (DLED) backlight screen realizes sharp images and crisp text. Automatic brightness
technology adjusts the intensity of the display based on ambient light conditions, to ensure a consistently vivid experience.
2.6% Anti-glare coating Matte diffuse reflection surface
Max display brightness 400 cd/㎡
Color
Jade white | Cadet gray
Screen
Optical anti-blue light: Supported
Refresh rate: 60 Hz
Color gamut: 90% NTSC (typical)
Viewing angle: 178° horizontal, 178° vertical
Multi-touch: 20
Resolution: 4K (3840 × 2160 px)
Backlight typeL DLED
Brightness: 400 cd/m2
Aspect ratio: 16:9
Glass hardnessL 7H (Mohs)
Screen lamination: Zero-gap bonding
Automatic brightness
adjustment: √
Anti-glare: √

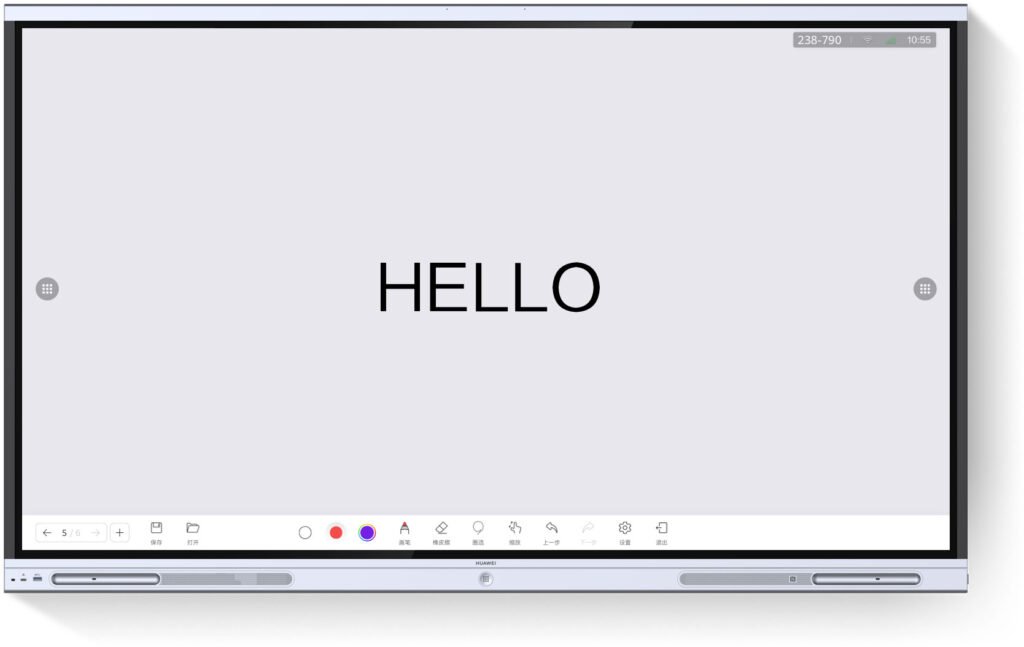

Writing
Precision: ±1 mm

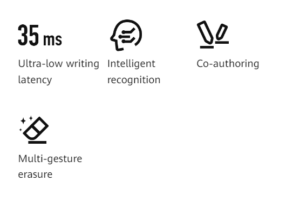

Writing Latency: 35 ms
Whiteboard saving mode: QR code scanning, email, USB flash drive, and local
Smart writing: Support for recognition of English Chinese, and 11 graphics
Erasing by hand gestures: √
Projection

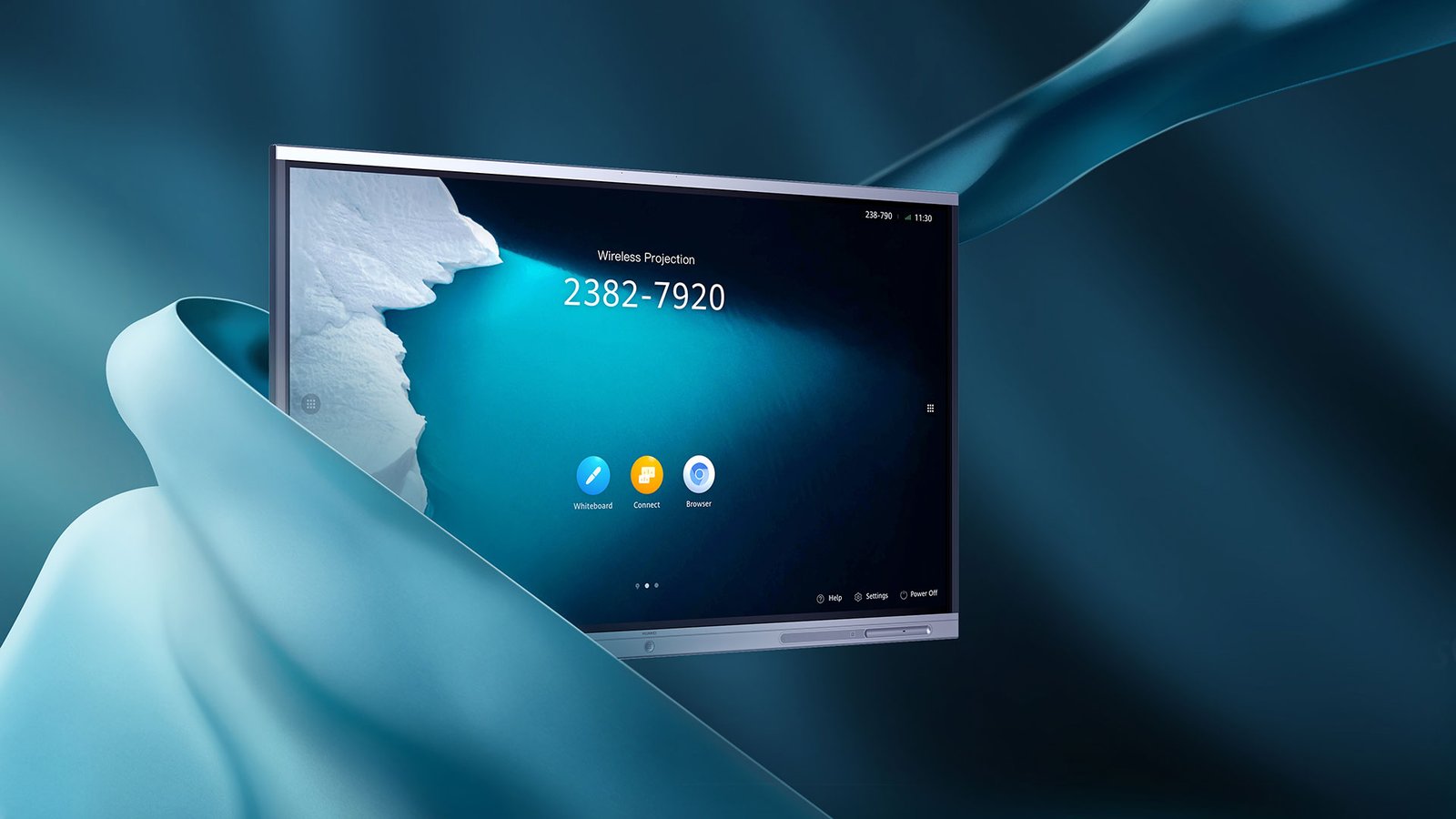

Projection mode: App free projection, DLNA, wired projection
Reverse control: √
Projection effect: 4k 30 fps
Processor
Flash: 64 GB
Operating System
Loudspeaker
Frequency domain: 20 Hz–20 kHz
Quantity: 4
Stereo: √
Sound pickup distance: 8 m
Microphone
Sound pickup angle: 180° front view
Quantity: 2
Frequency domain: 20 Hz–20 kHz
Enhanced function: Echo cancellation, noise suppression, automatic gain control
External microphone: √
Camera
Camera: No built-in camera, optional external camera
Intelligent Capabilities
Intelligent capabilities: Voice assistant, smart manager, smart writing assistant
Language
Supported: Simplified Chinese, Traditional Chinese, English, Spanish, French, Russian, Japanese, German, Portuguese, Italian, Arabic
Terminal interface
Video input: 2 x HDMI, 1 x USB Type-C port, 1 x optional OPS input
Video output: 1 x built-in screen, 1 x HDMI
Audio input: 1 x built-in microphone array, 1 x 3.5 mm LINE IN, 1 x optional OPS audio input, 2 x HDMI audio input
Audio output: 4 x built-in speaker, 1 x 3.5 mm LINE OUT, 1 x HDMI
Other ports: 2 x USB A ports, 1 x USB B port, and 1 x RJ45 port
Voltage: 100–240 V AC
Electrical characteristics
Frequency: 50–60 Hz

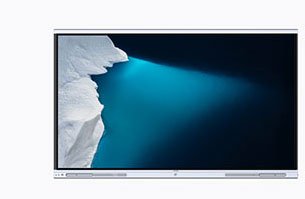

Maximum power: < 350 W (65”)
Authentication Information
Authentication Information: Low-blue light certification, CCRC blue standard certification for information security, CCC, CQC energy saving certification, CE (RoHS, REACH, and WEEE), VCCI, and wireless model approval
*The actual size may vary depending on the product configuration and manufacturing process.
Color
Jade white | Cadet gray
Screen
Optical anti-blue light: Supported
Refresh rate: 60 Hz
Color gamut: 90% NTSC (typical)
Viewing angle: 178° horizontal, 178° vertical
Multi-touch: 20
Resolution: 4K (3840 × 2160 px)
Backlight typeL DLED
Brightness: 400 cd/m2
Aspect ratio: 16:9
Glass hardnessL 7H (Mohs)
Screen lamination: Zero-gap bonding
Automatic brightness
adjustment: √
Anti-glare: √
Writing
Precision: ±1 mm
Writing Latency: 35 ms
Whiteboard saving mode: QR code scanning, email, USB flash drive, and local
Smart writing: Support for recognition of English Chinese, and 11 graphics
Erasing by hand gestures: √
Projection
Projection mode: App free projection, DLNA, wired projection
Reverse control: √
Projection effect: 4k 30 fps
Processor
Flash: 64 GB
Operating System
Loudspeaker
Frequency domain: 20 Hz–20 kHz
Quantity: 4
Stereo: √
Sound pickup distance: 8 m
Microphone
Sound pickup angle: 180° front view
Quantity: 2
Frequency domain: 20 Hz–20 kHz
Enhanced function: Echo cancellation, noise suppression, automatic gain control
External microphone: √
Camera
Camera: No built-in camera, optional external camera
Intelligent Capabilities
Intelligent capabilities: Voice assistant, smart manager, smart writing assistant
Language
Supported: Simplified Chinese, Traditional Chinese, English, Spanish, French, Russian, Japanese, German, Portuguese, Italian, Arabic
Terminal interface
Video input: 2 x HDMI, 1 x USB Type-C port, 1 x optional OPS input
Video output: 1 x built-in screen, 1 x HDMI
Audio input: 1 x built-in microphone array, 1 x 3.5 mm LINE IN, 1 x optional OPS audio input, 2 x HDMI audio input
Audio output: 4 x built-in speaker, 1 x 3.5 mm LINE OUT, 1 x HDMI
Other ports: 2 x USB A ports, 1 x USB B port, and 1 x RJ45 port
Voltage: 100–240 V AC
Electrical characteristics
Frequency: 50–60 Hz

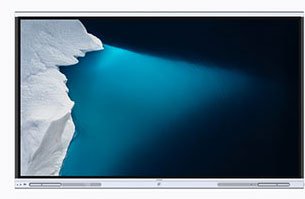

Maximum power: < 450 W (86”)
Authentication Information
Authentication Information: Low-blue light certification, CCRC blue standard certification for information security, CCC, CQC energy saving certification, CE (RoHS, REACH, and WEEE), VCCI, and wireless model approval
*The actual size may vary depending on the product configuration and manufacturing process.
